Understanding JavaScript packers

In the world of desktop software, the concept of packer is not new. A packer is a tool that takes a binary executable file as input, applies transformations (e.g. compression, encryption, introducing anti-debugging tricks) and outputs a new, modified executable file that is different at binary level, but retains the functionality of original program. Some packers, such as UPX are only meant to make the executable files smaller. More advanced packers apply machine code encryption to make reverse engineering harder. The key to decrypt the machine code is hidden in a binary file and applied automatically when program is launched, but the encryption layer introduces a barrier for disassebling or decompiling the machine code, which increases the effort needed to reverse engineer the inner workings of a program.

But that’s old news. Nowadays a lot of software is web-based. But the thing is, the concept of packer is also applicable in JavaScript world. There are tools and techniques to transform JS code in such a way that it becomes smaller and/or less readable. Thus JS packing can be used as obfuscation technique. Note that I am not talking about simple code minification here. Instead, we’re going to see some techniques that are similar to executable packing from the compiled software world.

Depending on what kind of hat the programmer is wearing, there might be different motivations to apply JS packing. One is simply to make JS code smaller, which helps performance. Lighter pages load faster, which leads to better user experience and may have a positive impact on search engine ranking. JS packing can also be applied to make things harder for web scraper developers, esp. if there’s some non-trivial client side functionality involved. For instance, Imperva (formely known as Incapsula) antibot solution is known to have used a simple JS packing technique as one layer of JS SDK code obfuscation. On the black hat side, JS packing is used to evade detection of malicious code that is placed on compromised or fraudulent websites for cybercrime purposes.

There are two aspects to JavaScript packing:

  1. Transforming the original code into a new (e.g. compressed, encoded, encrypted) form. This will be hardcoded into output code.
  2. Introducing a small amount of helper code that will unpack and execute the original code.

eval(unescape()) is the minimum viable JS packing technique. Original code is converted into URL-encoded form, then put as an argument to eval(unescape()) functions calls.

To find an example, we can search for "eval(unescape(" on PublicWWW. On one of the pages we find, there’s a following JS snippet:

var myText = 'Пишите нам'; eval(unescape('%64%6f%63%75%6d%65%6e%74%2e%77%72%69%74%65%28%27%3c%61%20%68%72%65%66%3d%22%6d%61%69%6c%74%6f%3a%76%69%74%40%61%75%64%69%74%2d%69%74%2e%72%75%3f%73%75%62%6a%65%63%74%3d%25%44%30%25%41%31%25%44%30%25%42%31%25%44%30%25%42%35%25%44%31%25%38%30%25%44%30%25%42%45%25%44%30%25%42%43%25%44%30%25%42%35%25%44%31%25%38%32%25%44%31%25%38%30%22%3e%27%2b%28%6d%79%54%65%78%74%20%3f%20%6d%79%54%65%78%74%20%3a%20%27%76%69%74%40%61%75%64%69%74%2d%69%74%2e%72%75%27%29%2b%27%3c%2f%61%3e%27%29%3b'))

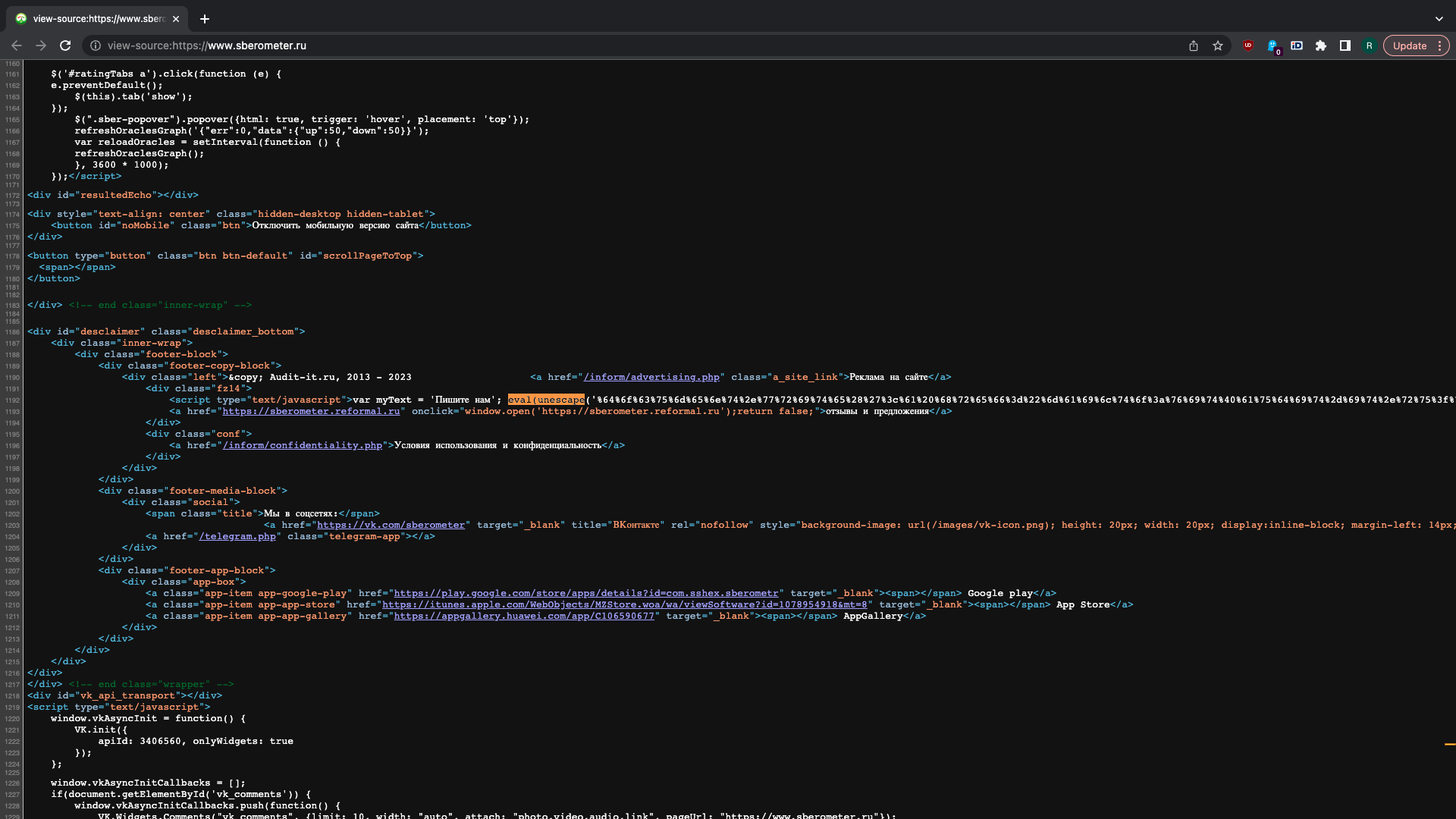

Screenshot 1

We can trivially recover the original source code of this snippet by copy-pasting the unescape() call into JS REPL:

$ node
Welcome to Node.js v20.1.0.
Type ".help" for more information.
> unescape('%64%6f%63%75%6d%65%6e%74%2e%77%72%69%74%65%28%27%3c%61%20%68%72%65%66%3d%22%6d%61%69%6c%74%6f%3a%76%69%74%40%61%75%64%69%74%2d%69%74%2e%72%75%3f%73%75%62%6a%65%63%74%3d%25%44%30%25%41%31%25%44%30%25%42%31%25%44%30%25%42%35%25%44%31%25%38%30%25%44%30%25%42%45%25%44%30%25%42%43%25%44%30%25%42%35%25%44%31%25%38%32%25%44%31%25%38%30%22%3e%27%2b%28%6d%79%54%65%78%74%20%3f%20%6d%79%54%65%78%74%20%3a%20%27%76%69%74%40%61%75%64%69%74%2d%69%74%2e%72%75%27%29%2b%27%3c%2f%61%3e%27%29%3b')
`document.write('<a href="mailto:[REDACTED]?subject=%D0%A1%D0%B1%D0%B5%D1%80%D0%BE%D0%BC%D0%B5%D1%82%D1%80">'+(myText ? myText : '[REDACTED]')+'</a>');`

This turned out to be a simple trick to hide owner’s email address from web scrapers that don’t execute JavaScript and are not tailored to this specific site.

A more complex example would be Dean Edwards packer. Let us pack the following JavaScript snippet:

let hello = "hello world";
console.log(hello);

After checking both checkboxes and pressing “Pack” button we get the following packed code:

eval(function(p,a,c,k,e,r){e=String;if(!''.replace(/^/,String)){while(c--)r[c]=k[c]||c;k=[function(e){return r[e]}];e=function(){return'\\w+'};c=1};while(c--)if(k[c])p=p.replace(new RegExp('\\b'+e(c)+'\\b','g'),k[c]);return p}('1 0="0 2";3.4(0);',5,5,'hello|let|world|console|log'.split('|'),0,{}))

Using Beautifier.io to prettify (but not unpack at the moment - make sure all checkboxes are unchecked) this code makes it slightly more readable:

eval(function(p, a, c, k, e, r) {
    e = String;
    if(!''.replace(/^/, String)) {
        while(c--) r[c] = k[c] || c;
        k = [function(e) {
            return r[e]
        }];
        e = function() {
            return '\\w+'
        };
        c = 1
    };
    while(c--)
        if(k[c]) p = p.replace(new RegExp('\\b' + e(c) + '\\b', 'g'), k[c]);
    return p
}('1 0="0 2";3.4(0);', 5, 5, 'hello|let|world|console|log'.split('|'), 0, {}))

Screenshot 2

In the outermost layer we see that eval() function takes a JS code string returned by immediately invoked function with five parameters - p, a, c, k, e and r. The values for these arguments are related to original code snippet and in aggregate represent a packed representation. The innermost function applies some regular expression magic to regenerate what the code was originally, so that eval() could execute it.

Like with the previous example, we can skip the eval() part and perform only the unpacking:

> let unpack = function(p,a,c,k,e,r){e=String;if(!''.replace(/^/,String)){while(c--)r[c]=k[c]||c;k=[function(e){return r[e]}];e=function(){return'\\w+'};c=1};while(c--)if(k[c])p=p.replace(new RegExp('\\b'+e(c)+'\\b','g'),k[c]);return p};
undefined
> unpack('1 0="0 2";3.4(0);',5,5,'hello|let|world|console|log'.split('|'),0,{});
'let hello="hello world";console.log(hello);'

We got the original code without newline in the middle. Like with other obfuscation techniques, we are not necessarily able to recover the exact original code when reverse engineering.

A lot of the online JS packer tools are some variations of Dean Edwards packer that was originally developed in C#. Thus it is useful to know how to revert what it does to the code.
