JavaScript AST manipulation with Babel: removing unreachable code

Unreachable parts can be injected into JavaScript source as a form of obfuscation. We will go through a couple of simple examples to show how the unreachable code paths can be removed at Abstract Syntax Tree level for reverse engineering purposes.

For the first example, let us consider the following code:

if (1 == 2)
    console.log("1 == 2");

if (1 == 1) {
    console.log("1 == 1");
} else if (1 == 2) {
    console.log("1 == 2");
} else {
    console.log("Unreachable as well");
}

1 == 1 ? console.log("yes") : console.log("no");

console.log("Hello");

Running it will produce three lines of output:

$ node dead_branches.js
1 == 1
yes
Hello

We want to simplify it to the point of having only three console.log() calls in the cleaned up version of the script.

Let us copy-paste this code into AST Explorer to see what it looks like when parsed into Babel AST data model. We notice that if statements are parsed into IfStatement node and that line with question mark (conditional/ternary operator) is parsed into ConditionalExpression node. Both of these nodes have test property for representing condition itself, consequent property for part of the code that would run if condition was true and alternate property for the code that would run otherwise. The alternate property might be null if there was no else block in the if statement or it might be pointing to another IfStatement node if we have multiple conditions that the code tries to match against. Both branches of If statement or conditional expression may point to BlockStatement node if there’s a block of statements to be executed.

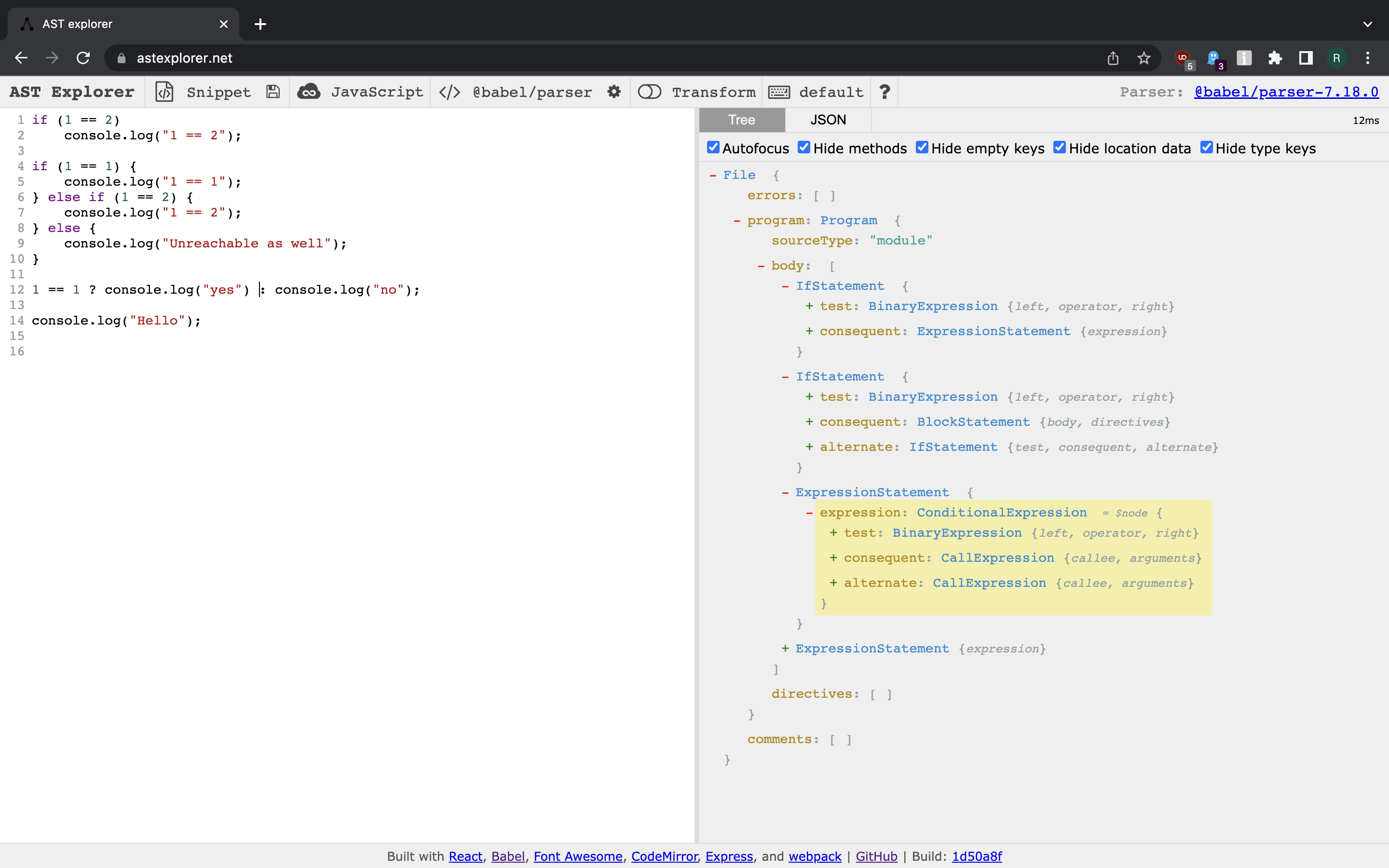

Screenshot 1

In our sample code 1 == 2 will always be false and 1 == 1 will always be true. To make things easier for us, Babel provides a way to evaluate if stuff in test is “truthy”.

All of this informs us on how to implement our cleanup code:

const fs = require("fs");

const parser = require("@babel/parser");
const generate = require("@babel/generator").default;
const traverse = require("@babel/traverse").default;
const types = require("@babel/types");

let js = fs.readFileSync("dead_branches.js", "utf-8");

const ast = parser.parse(js);

traverse(ast, {
    "ConditionalExpression|IfStatement": function(path) {
        let isTruthy = path.get("test").evaluateTruthy();
        let node = path.node;

        if (isTruthy) {
            if (types.isBlockStatement(node.consequent)) {
                path.replaceWithMultiple(node.consequent.body);
            } else {
                path.replaceWith(node.consequent);
            }
        } else if (node.alternate != null) {
            if (types.isBlockStatement(node.alternate)) {
                path.replaceWithMultiple(node.alternate.body);
            } else {
                path.replaceWith(node.alternate);
            }
        } else {
            path.remove();
        }
    }
});

let clean = generate(ast).code;

fs.writeFileSync("no_dead_branches.js", clean);

We use ConditionalExpression|IfStatement string value as a key to match our visitor function to both kinds of nodes we want to modify when traversing the AST. We use evaluateTruthy() method to check if condition in test evaluates to Boolean true. If it does, then we replace the If statement or conditional expression with the code under the positive branch. This removes the If statement (or conditional expression) and all the negative branches (if there are any). If it does not evaluate to Boolean true value, we need to check if alternate points to else part - we modify the AST to leave this part only. If alternate is null then we remove the entire shebang (this applies to the very first If statement in the sample code). If there’s block statement on the relevant branch, we need to replace the parent node with all the nodes in the body of that BlockStatement node.

Running this deobfuscation code produces the following cleaned-up JS code:

console.log("1 == 1");
console.log("yes");
console.log("Hello");

Another example will be about unreachable functions that are never going to be executed.

Consider the following code:

function dead1(a, b) {
    return a + b + 1;
}

function dead2() {
    console.log("!!");
}

function dead3() {
    dead1(1, 2);
    dead2();
}

console.log("Hello");

We want all three functions removed. In AST Explorer we can see that Babel parses each function into FunctionDeclaration node.

We will use Babel getBinding() method to check if they are being referenced anywhere (in a way that heeds lexical scopes). But here’s a little problem: dead1() and dead2() are being called by dead3() so they do have references to them. Out of three functions, only dead3() is not being references by any other code. We are going to address this (perhaps in hacky manner) by doing more than one pass of AST traversal.

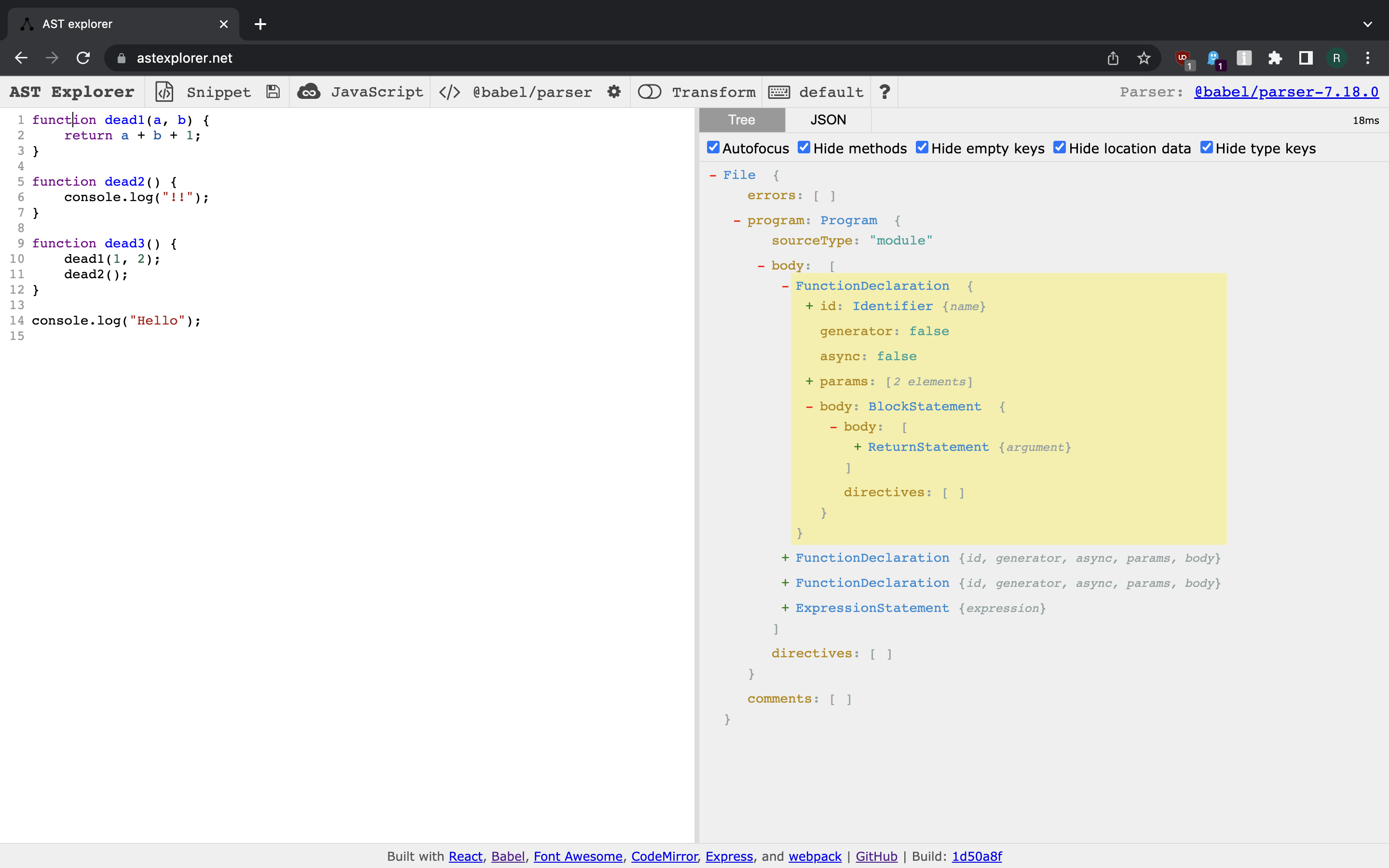

Screenshot 2

The code that cleans up these dead functions is as follows:

const fs = require("fs");

const parser = require("@babel/parser");
const generate = require("@babel/generator").default;
const traverse = require("@babel/traverse").default;
const types = require("@babel/types");

var js = fs.readFileSync("dead_functions.js", "utf-8");
var ast;

do {
    ast = parser.parse(js);
    var removed = 0;
    traverse(ast, {
        FunctionDeclaration: function(path) {
            if (!path.scope.getBinding(path.node.id.name).referenced) {
                path.remove();
                removed++;
            }
        }
    });
    js = generate(ast).code;
} while (removed > 0);

let clean = generate(ast).code;

fs.writeFileSync("no_dead_functions.js", clean);

After running this script, we have the following clean version of the code:

console.log("Hello");
