One Javascript obfuscation technique that can be found in the wild is string array mapping. It entails gathering all the string constants from the code into an array and modifying the code so that string literals are accesssed by referencing the array at various indices instead of having string literals being used directly. Like with previously discussed obfuscation techniques we will be exploring it in isolation, but in real websites it will most likely be used in combination with another techniques.

Let us consider the following code:

console.log("Hello Venus");
console.log("Hello Earth");
console.log("Hello Mars");

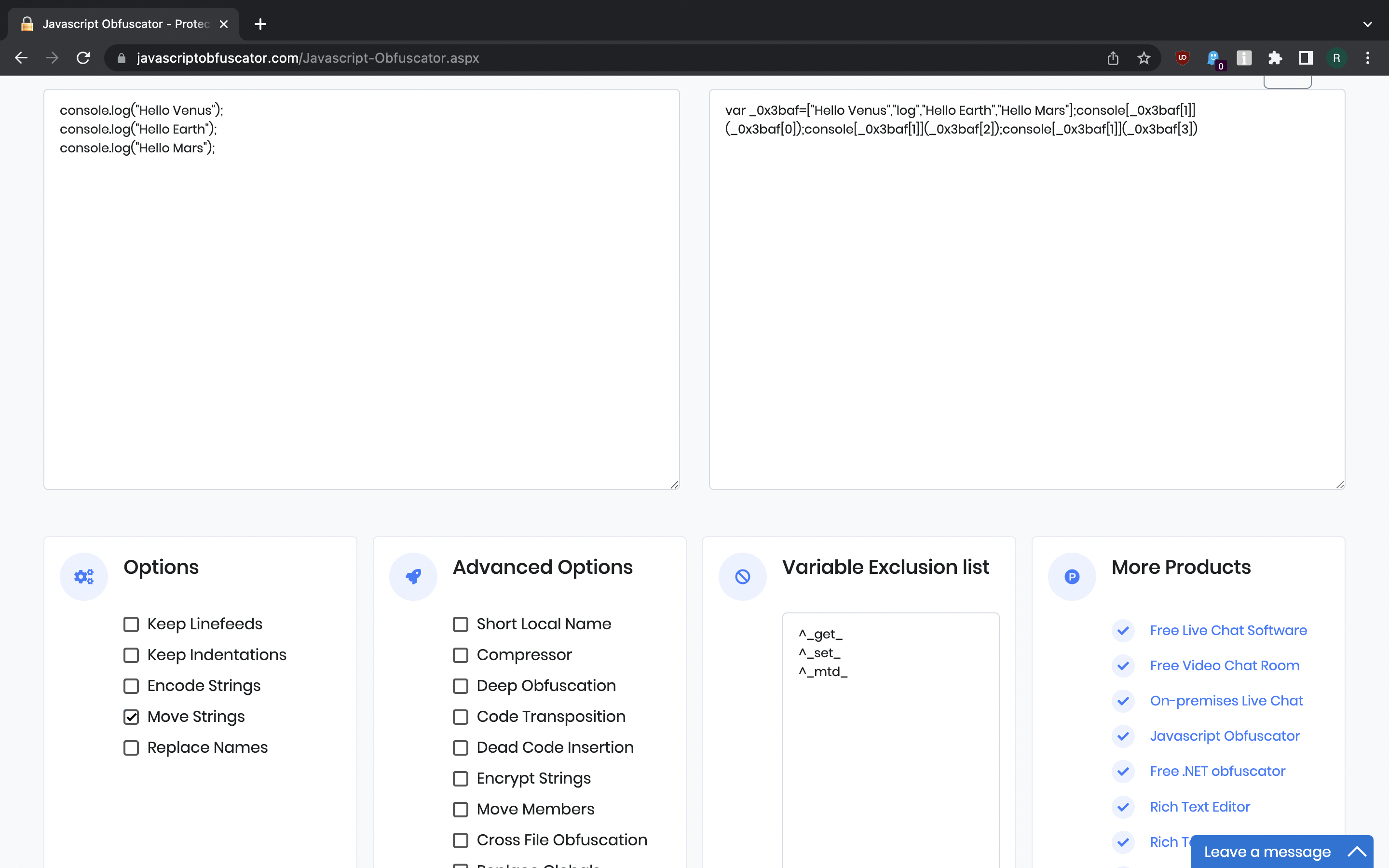

Obfuscating this with Javascript Obfuscator “Move Strings” option turns it into the following obfuscated version:

var _0x3baf=["Hello Venus","log","Hello Earth","Hello Mars"];console[_0x3baf[1]](_0x3baf[0]);console[_0x3baf[1]](_0x3baf[2]);console[_0x3baf[1]](_0x3baf[3])

Screenshot 1

We have a single line consisting of multiple JS statements. Let us break this down for easier readability:

var _0x3baf=["Hello Venus","log","Hello Earth","Hello Mars"];
console[_0x3baf[1]](_0x3baf[0]);
console[_0x3baf[1]](_0x3baf[2]);
console[_0x3baf[1]](_0x3baf[3])

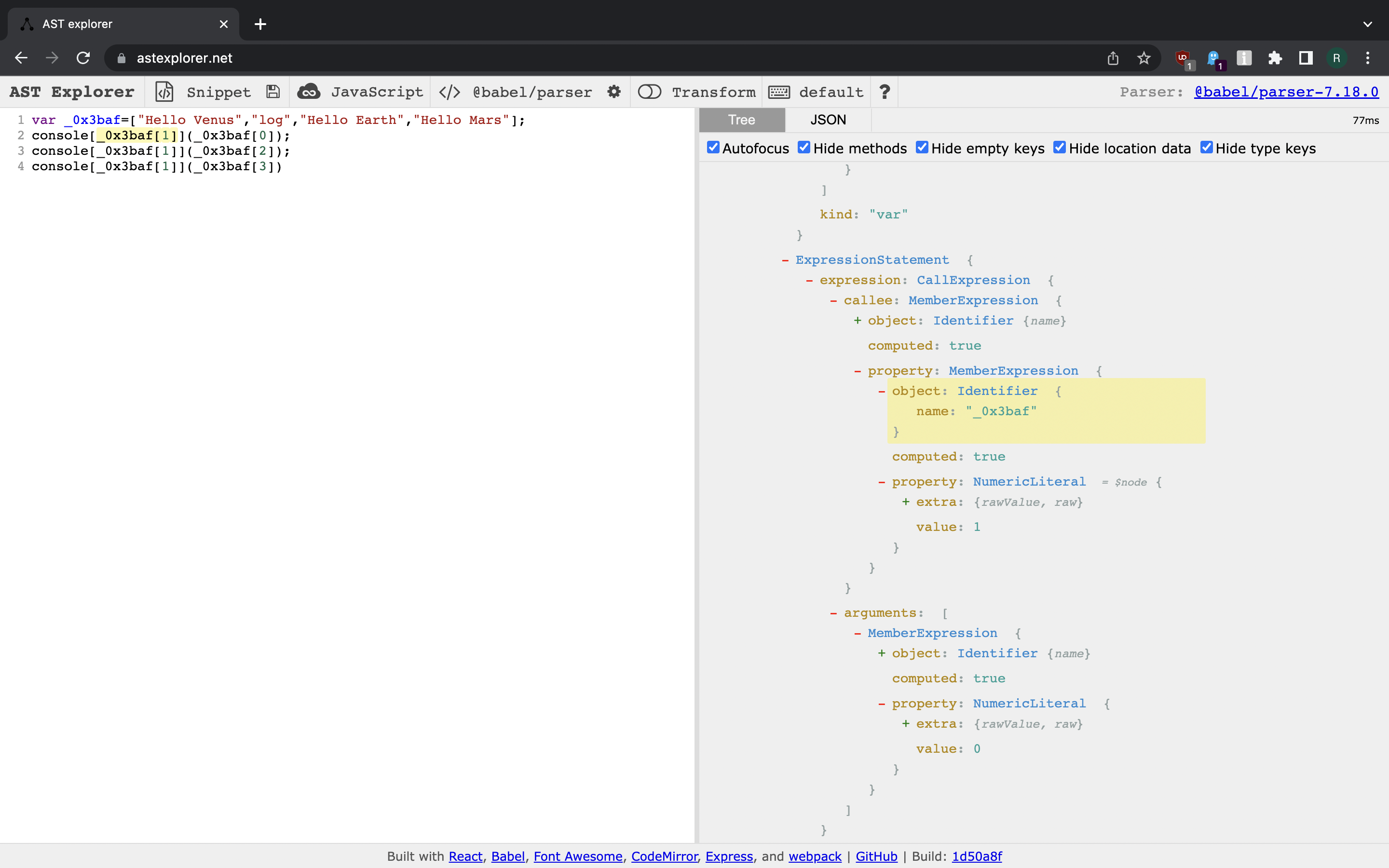

We can see that _0x3baf is an array of strings with all the string literals that were used in the code (including log as console.log is equivalent to console["log"]) and that is being referenced in further statements. Let us analyse this code in ASTExplorer.

Screenshot 2

Whenever the aforementioned string array is being used to get a string constant, we have a MemberExpression node in the tree with object instance variable being Identifier for the array name and property being NumericLiteral with index value. Of course, not every reference to an array will be related to string obfuscation, so we will have to check in our deobfuscation script if the array element at given index is indeed a string literal.

Like in previous posts, our code will have three parts:

1. Reading the JS code and parsing it into Babel AST data model.
2. Traversing the AST and modifying it using a visitor function.
3. Regenerating the code from AST.

In step 2 we will be using getBinding() method to get a binding of an array name. This will let us dig up an ArrayExpression node that has all the array elements so that we can perform an AST node substitution.

The code to deobfuscate this simple case of string array mapping is as follows:

const fs = require("fs");

const parser = require("@babel/parser");
const generate = require("@babel/generator").default;
const traverse = require("@babel/traverse").default;
const types = require("@babel/types");

let code = fs.readFileSync("obfuscated.js", "utf-8");

const ast = parser.parse(code);

traverse(ast, {
    MemberExpression: function(path) {
        if (!path.node.property) return;
        if (!types.isNumericLiteral(path.node.property)) return;

        let idx = path.node.property.value;

        let binding = path.scope.getBinding(path.node.object.name);
        if (!binding) return;

        if (types.isVariableDeclarator(binding.path.node)) {
            let array = binding.path.node.init;
            if (idx >= array.length) return;

            let member = array.elements[idx];

            if (types.isStringLiteral(member)) {
                path.replaceWith(member);
            }
        }
    }
});

fs.writeFileSync("clean.js", generate(ast).code);

We tie our visitor function to MemberExpression node type as that corresponds to parts of AST we want to modify. We make sure that property is indeed a numeric literal and take an array index from there. Next, we get the binding based on array name. On success, binding will point to a relevant VariableDeclarator node (through path and node) that points to the ArrayExpression node through init property. We have a reference to an array and we also have an index. We get the the array member. If it is indeed a string literal we perform the node substitution.

The deobfuscated code is as follows:

var _0x3baf = ["Hello Venus", "log", "Hello Earth", "Hello Mars"];
console["log"]("Hello Venus");
console["log"]("Hello Earth");
console["log"]("Hello Mars");

By working with Abstract Syntax Tree we were able to treat the code as data structure that can be manipulated to simplify it for undoing the obfuscation.
