When doing Javascript deobfuscation work at AST level one will need to create new parts of AST for replacing the existing parts of AST being processed. We will go through 3 ways of doing that.

For the sake of an example, let us try to build an AST for the following JS snippet:

debugger;
console.log("!")
debugger;

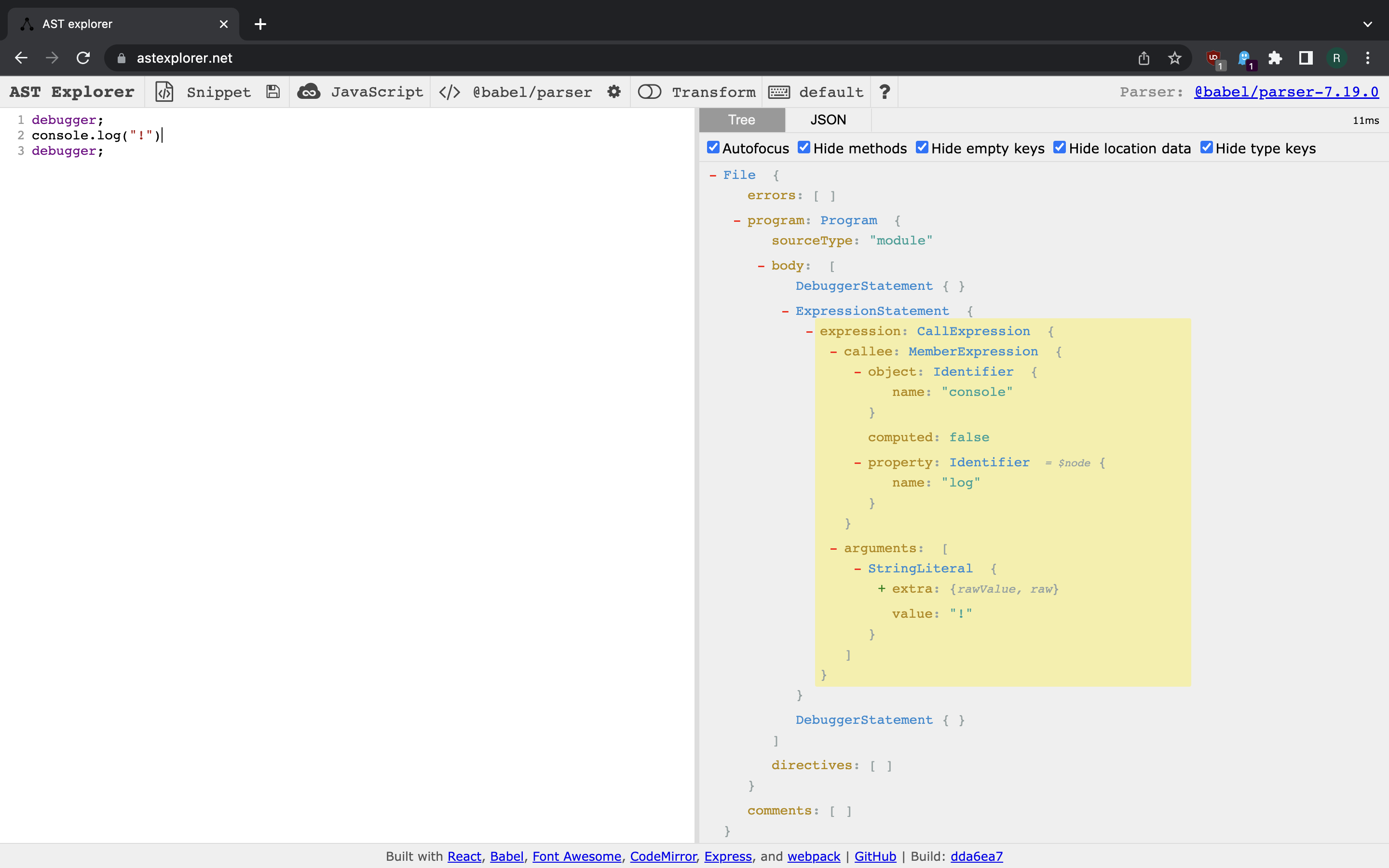

Babel parses this into two DebuggerStatement nodes and and one ExpressionStatement node.

Screenshot

We don’t need to worry about File and Program objects and should only focus on the program body that contains the following child nodes:

1. DebuggerStatement
2. ExpressionStatement
   • expression: CallExpression
     • callee: MemberExpression
       • object: Identifier
         • name: "console"
       • computed: false
       • property: Identifier
         • name: "log"
   • arguments: []
     1. StringLiteral
        • extra:
          • rawValue: "!"
        • value: "!"
3. DebuggerStatement

Once we build these three statements, we can replace some part of AST with them. That will be shown as well.

Instantiate node objects, arrange them into tree

In software development there is often a tradeoff to be made between simplicity of the code and it’s flexibility. We will start with the least simple, but most flexible approach - explicitly instantiating AST node objects and arranging them in a way that recreates the AST subtree above.

We need to refer to spec for Babel AST objects and their properties in Babel codebase file packages/babel-parser/ast/spec.md. Furthermore, we need to check node creation APIs in @babel/types documentation.

By using the information in these two documents, we can write the following code:

const parser = require("@babel/parser");
const generate = require("@babel/generator").default;
const t = require("@babel/types");

const debugStmt1 = t.debuggerStatement();

const consoleId = t.identifier("console");
const logId = t.identifier("log");
const stringLiteral = t.stringLiteral("!");
const callee = t.memberExpression(consoleId, logId);
const callExpr = t.callExpression(callee, [ stringLiteral ]);
const exprStmt = t.expressionStatement(callExpr);

const debugStmt2 = { type: 'DebuggerStatement' };

const body = [ debugStmt1, exprStmt, debugStmt2 ];

const ast = parser.parse(""); // Parsing empty string creates AST with File and Program nodes.

ast.program.body = body;

console.log(ast);
console.log("==================");
console.log(generate(ast).code);

Note that we can build AST node objects either by using factory functions from @babel/types or by defining them as JS objects directly. Compare how debugStmt1 and debugStmt2 were created.

Running this Node.JS script prints the modified AST and the generated code:

$ node instantiate.js
Node {
  type: 'File',
  start: 0,
  end: 0,
  loc: SourceLocation {
    start: Position { line: 1, column: 0, index: 0 },
    end: Position { line: 1, column: 0, index: 0 },
    filename: undefined,
    identifierName: undefined
  },
  errors: [],
  program: Node {
    type: 'Program',
    start: 0,
    end: 0,
    loc: SourceLocation {
      start: [Position],
      end: [Position],
      filename: undefined,
      identifierName: undefined
    },
    sourceType: 'script',
    interpreter: null,
    body: [ [Object], [Object], [Object] ],
    directives: []
  },
  comments: []
}
==================
debugger;
console.log("!");
debugger;

Thus we have demonstrated a very basic example of JS code generation with Babel.

Use Babel template

@babel/template module lets us define a code template, parametrise it with AST nodes and create a subtree from that.

Let us generate the JS snippet using this approach:

const parser = require("@babel/parser");
const generate = require("@babel/generator").default;
const t = require("@babel/types");
const template = require("@babel/template").default;

const exampleTempl = template(`
debugger;
console.log(%%msg%%);
debugger;
`);

const body = exampleTempl({
    msg: t.stringLiteral("!")
});

const ast = parser.parse("");

ast.program.body = body;

console.log(ast);
console.log("==================");
console.log(generate(ast).code);

We’re getting the same output as from the previous script.

Parse the source code

Sometimes you may want to add some code that does not depend on any context is is fairly simple. Due to recursive structure of AST we can create a small AST by parsing a JS snippet and plug it into where we want it to be in the bigger tree. This is as simple and basic as can get and I don’t think it warrants any sample code. However we must not forget that in some cases easy and simple way is the right way.
